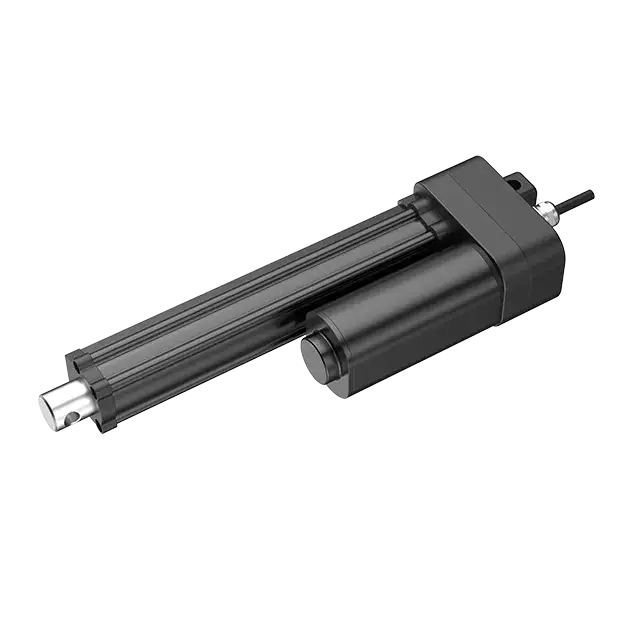

Linear Actuators LA005W
Waterproof Actuator
Voltage:12/ 24 V
Stroke: 50-400mm
Product Description
- Load in push：3000N, 2000N, 1000N
- Load in pull：2000N, 1000N
- Color: Black
- IP grade: Max. IP67
- Stroke length:
3000N：50-250mm
2000N：50-400mm
1000N：50-400mm - Installation dimensions:
L=170(S≤50)
L=S+120（50≤S≤400） - Noise level: ≤55dB, ( environmental noise≤40dB)
- Hall sensor : optional
- Built-in electrical limit switch.
- Weight: About 1.413kg (different stroke length and installation dimensions with different weight )
- Static bending moment: lateral load are not allowed.
