Linear Actuators LA015SA
Load speed(mm/s): 0.5mm/s
Stroke:(mm): 700-1130mm
IP grade: IP66
Product Description

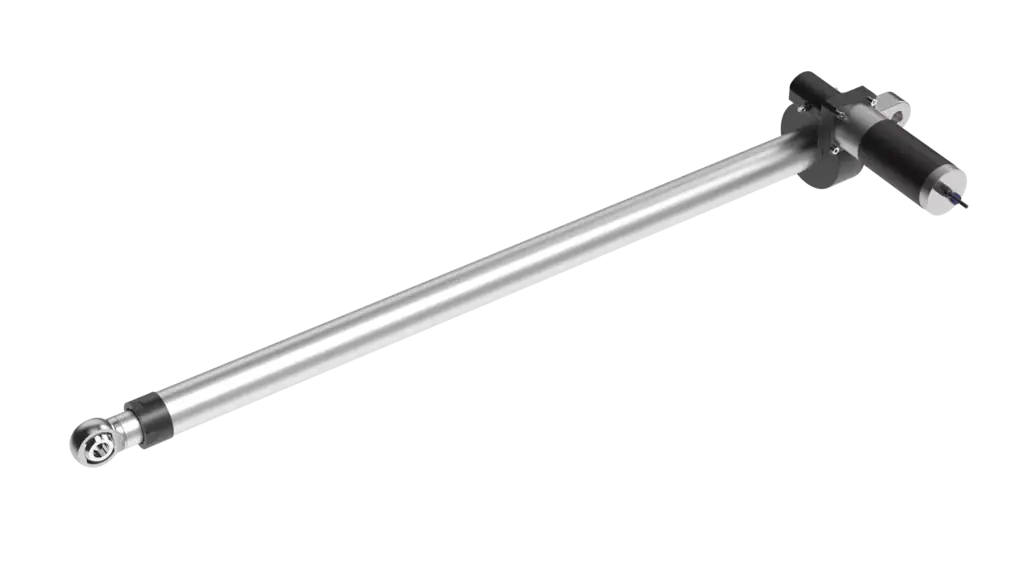

- The JIECANG JC35SA1 linear actuator is designed to control the north-south movement of solar trackers. The actuator is pre-installed with limit switches, ensuring that the linear actuator will continue to move even when the solar tracker electronics instruct it to.
- Max. dynamic load(KN): 30
- Max. static load(KN): 60(Half stroke) /40(Full stroke)
- Load speed(mm/s): 0.5
- Stroke/installation(mm): 700/1130(customization)
- Top clevis aperture(mm): 20
- Type of clevis: Fixed/movable clevis (optional)
- IP grade: IP66
- Salt spray test(H): 480
- Use environment(℃): -30 ~ +60
