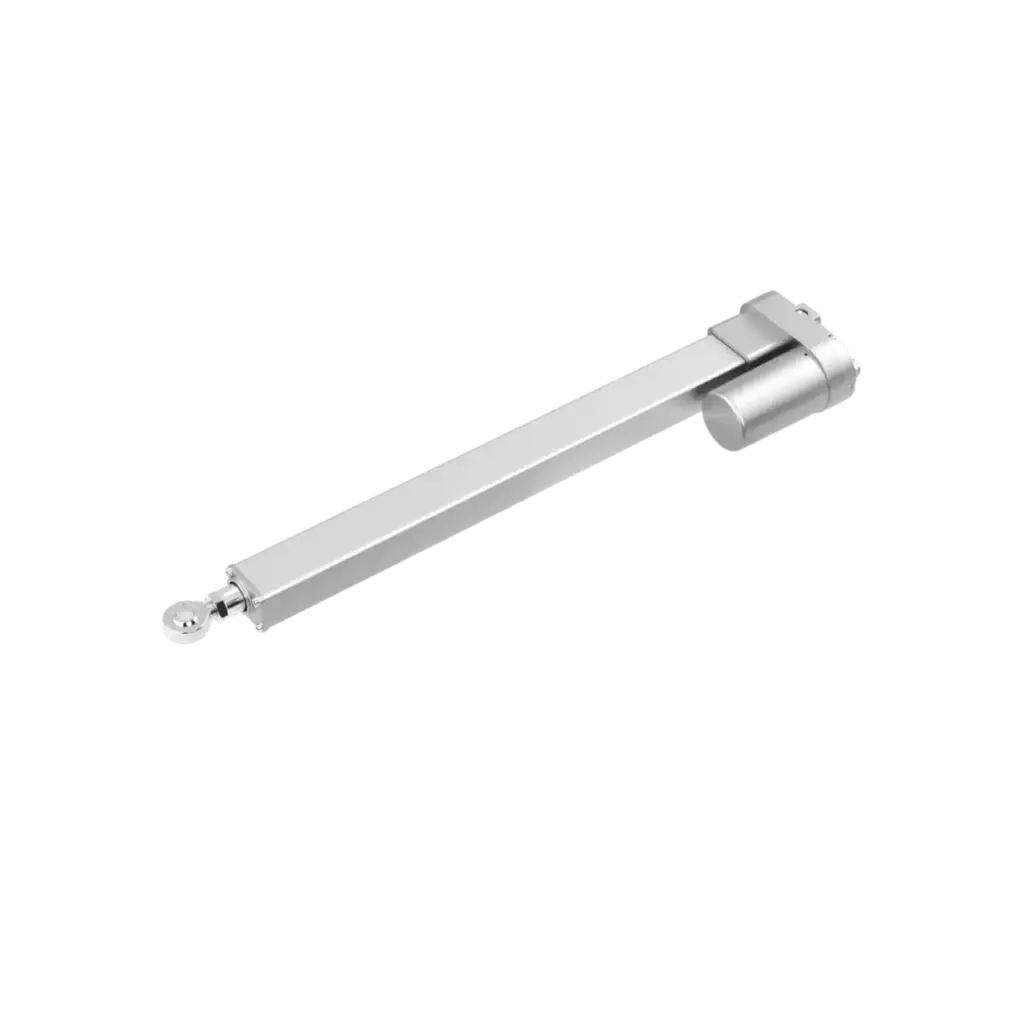

Linear Actuators LA01SA
IP grade: IP66
Voltage : 24/12 V
Stroke: 550mm
Product Description
- Linear Actuators LA01SA is a high-performance solar linear actuator designed by LAND for solar photovoltaic tracking systems. It is compatible with 12V and 24V power supplies, has a stroke of 550mm, and can be customized according to project requirements.
- Max. dynamic load(KN): Configuration 1: 12 Configuration 2: 4
- Max. static load(KN): 35(Half stroke)
- Load speed(mm/s): Configuration 1: 2 Configuration 2: 2.4
- Stroke/installation(mm): 550/865(customization)
- Top/end clevis aperture(mm): 20/20
- Type of clevis: Fixed/movable clevis (optional)
- IP grade: IP66
- Salt spray test(H): 480
- Use environment(℃): -30 ~ +60
- Voltage (V): 24/12
- Duty cycle: 20%
